適用范圍

◆適用于一般工業及民用建筑的屋頂采光、通風、排煙。不適用于高溫及有腐蝕性的建筑。

◆適用于屋面坡度為2%-10%的建筑。

◆適用于基本風壓小于等于900Pa的地區。



Application Scope

◆The general industrial &civil building's roof lighting, ventilation, smoke exhaust.

◆The roof slope range of buildings: 2%-10%.

◆Basic wind pressure: no more than 900Pa.



天窗類型/Skylight Type

◆三角形天窗/ Triangle Skylight

◆一字型天窗/ Linear Skylight

◆圓拱型天窗/Arched Skylight

◆避風型天窗/Wind Shelter Skylight

◆側開型天窗/Side Open Skylight

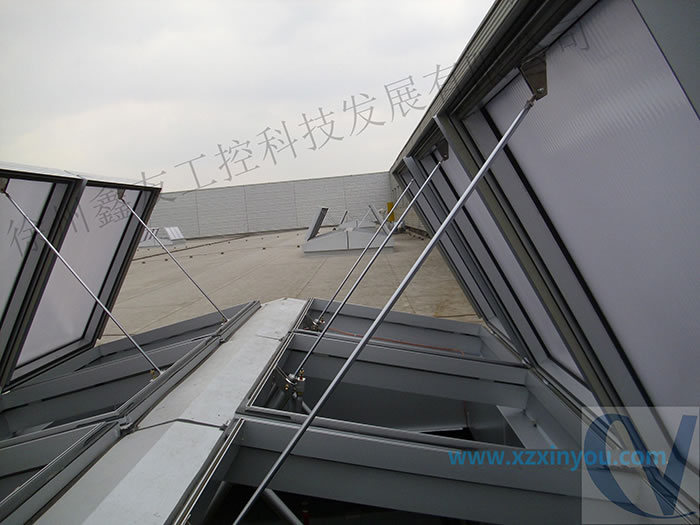

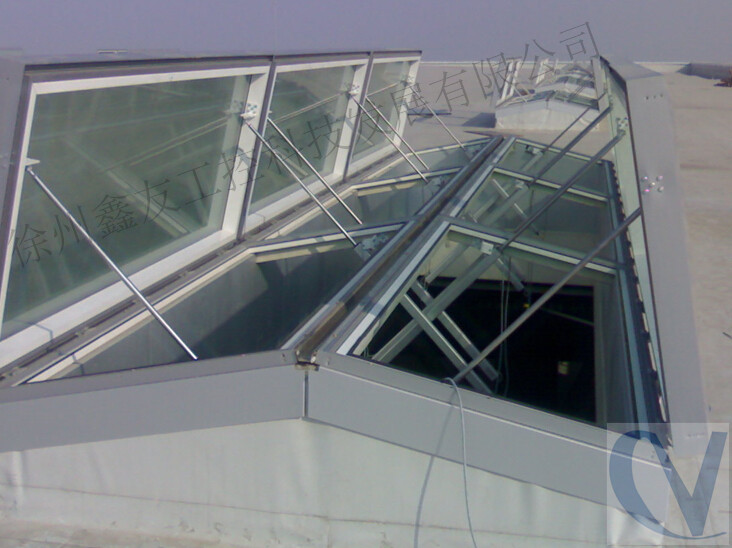

1.三角型和一字型電動采光排煙窗適用于平時采光為主，必要時開啟的建筑。其***大開啟角度為60°和90°。

2.避風型電動采光排煙天窗適用于任何天氣都要通風、排煙的建筑，可避免出現飄雨、飄雪的現象，***大開啟角度為30°。

3.圓拱型電動采光排煙天窗適用于經常開啟通風的建筑，其***大開啟角度為45°。

4.側開型電動采光排煙天窗適用于一般通風量要求的6米柱距縱向天窗的工業廠房，其***大開啟角度為45°。



◆Triangle Skylight and Linear Skylight are applied to the buildings, used for mainly lighting, opened if necessary. The maximum opening angles are 60° and 90°.

◆Wind Shelter Skylight is applied to the buildings, which guarantee ventilation &smoke exhaust in any weather. The maximum opening angle is 30°.

◆Arched Skylight is applied to the buildings, used for mainly ventilation. The maximum opening angle is 45°.

◆Side Open Skylight is usually applied to the industry workshop. The maximum opening angle is 45°.



天窗的啟閉控制方式

1.電動開窗機采用24V直流或者220V交流電源，功率是30W，啟閉時間6-8秒。

2.天窗啟閉宜群組控制，每組天窗數根據天窗數量及控制距離決定。

3.天窗三種控制方式：通用控制方式、智能控制方式、智能網絡控制方式。

以上控制方式均可以消防聯動控制，與消防報警連接。



Control Mode of Skylight

◆The actuator feature:

  Current:24V DC or 220V AC, Power: 30W, Opening and Closing time：6-8 seconds.

◆The skylights are suitable for group control, the amount of each group is depended on the quantity and control distance of skylights.

◆Three control modes: general mode, intelligent method &intelligent network method.
